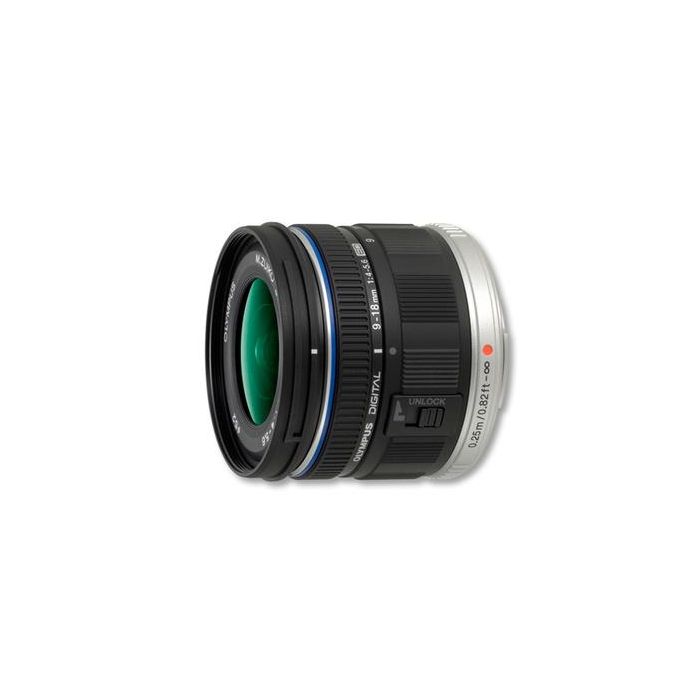

Olympus M. Zuiko Digital ED 9-18mm 1:4.0-5.6

The M.ZUIKO DIGITAL ED 9-18mm 1:4.0-5.6 (35mm equivalent focal length: 18-36mm) expands the new lens system. The ultra compactness is undeniable with its a weight of only 155g and a total length of 49mm, possible through the retractable parking mechanism. Compared with our existing ultra wide-angle zoom “ZUIKO DIGITAL ED 9-18mm F4.0-5.6” the volume has been reduced by 50% and the weight even by 40%. But not only the amazing compactness satisfies, but also the excellent image quality. You can easily create powerful effects of perspective or use it at the wide-end for excellent close-up shooting with a minimum distance of 15cm from the lens front.

Focal Length
Focal length 9 mm - 18 mm
Focal length (equiv. 35mm) 18 mm - 36 mm
Lens Construction
Lens configuration 12 lenses / 8 groups
Aspherical glass elements 1 (1 is ED galss)
Lens mechanism Inner focus
ED lens 1
Angle of view 100 - 62 °
Closest focusing distance 0.25 m
Maximum image magnification 0.1 x (Micro Four Thirds) / 0.2 x (35mm format)
Aperture
Number of aperture blades 7 Circular aperture diaphragm for natural background blurring
Maximum aperture 1:4.0 (wide) / 1:5.6 (tele)
Minimum aperture 1:22
Dimensions
Filter diamater 52 mm
Dimensions 56.5 mm Ø, 49.5 mm
Weight 155 g
